220V 500W Micro Hydraulic Turbine Generator Water Electromagnet Full Copper Core

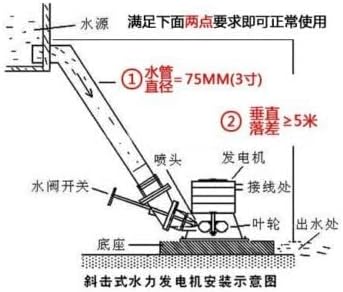

Type: Hydroelectric generator Nozzle diameter: 1.8CM Water level difference: 7-15M Flow rate: 0.008-0.011m3/s Material: copper + metal feature: 1. The generator adopts the best NdFeB permanent magnet and high-grade pure copper winding, which can generate power stably and efficiently. 2. Specially designed rotor and rotor, low resistance at start-up and good cooling 3. Gearless, direct drive and low rare earth permanent magnet generators for easy operation and maintenance. 4. Die-cast aluminum alloy shell, anti-corrosion, acid and alkali resistance, salt corrosion resistance application: This unit can be used in remote areas to provide temporary power. The customer connects the unit to a collapsible hose (fire hose) to obtain temporary power during camping. Suitable for household lighting, TV, electric furnace and other pure resistance household appliances Not suitable for household appliances, such as refrigerators, washing machines, pumps, etc. installation steps: After the unit foundation of the poured concrete is solidified, the unit is installed in place and then watered sequentially. The water level must be measured with a water level gauge to ensure that the unit is held in a horizontal position. The gap between the equipment and the floor should be sealed with cement and no water seepage is allowed. After installing the equipment, check and turn the turbine shaft of the turbine by hand. If the machine is flexible, the installation is complete. Installation requirements: The bottom of the turbine is in close contact with the base plane. specification: Output voltage: AC 220V Power: 500W Nozzle diameter: 1.8CM Water level difference: 7-15M Flow rate: 0.008-0.011m3/s Pressure tube diameter: 8CM (3 inches) Material: copper + metal Weight: 21KG

• Efficient Power Generation: This micro hydraulic turbine generator is designed to efficiently convert water flow into electrical energy, providing a reliable and sustainable power source.
• High-Quality Construction: Made with a full copper core, this generator ensures optimal conductivity and durability, allowing for long-lasting and efficient power generation.
• Versatile Applications: Suitable for various applications, including small-scale hydroelectric projects, off-grid power systems, and remote locations where access to traditional power sources is limited.
• Easy Installation: With its compact size and user-friendly design, this turbine generator is easy to install and can be integrated into existing water systems with minimal modifications.
• Reliable Performance: Equipped with an electromagnet, this generator provides stable and consistent power output, ensuring reliable performance even in challenging environmental conditions.
